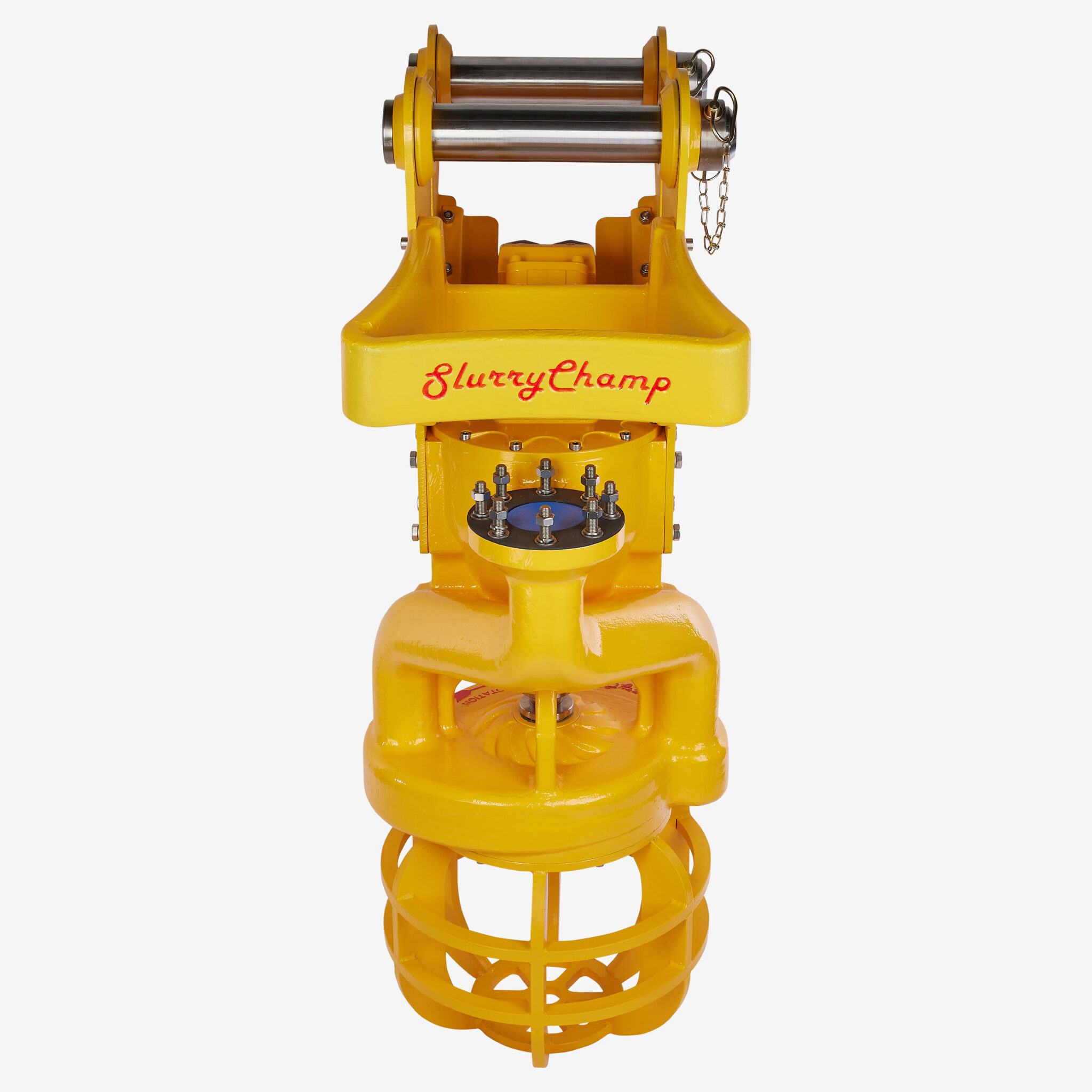

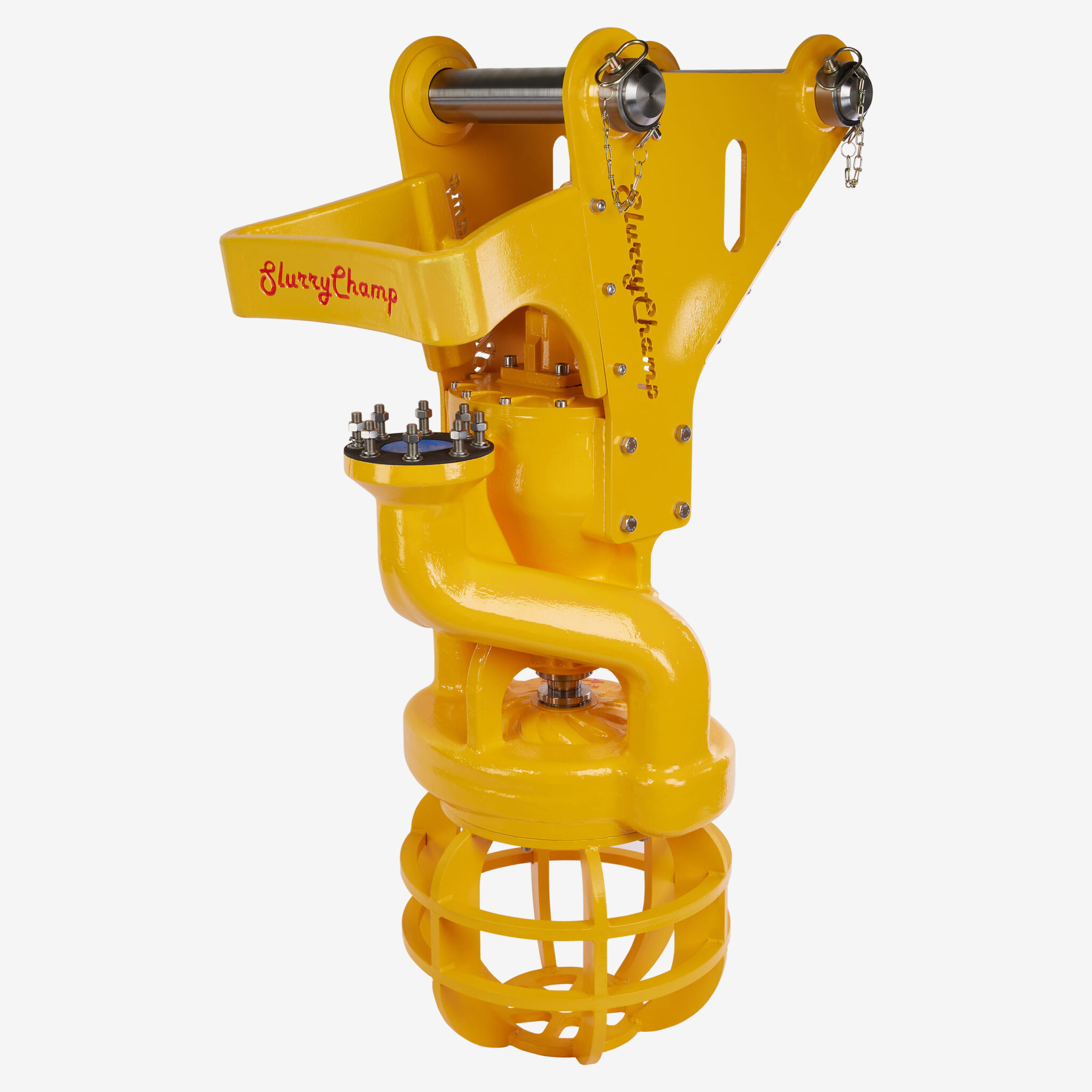

100 XPL Light Duty Hydraulic Submersible Slurry Pump

100mm pump for light duty with a drainless motor suitable for use as an excavator attachment. For use with an excavator rated at 10-25t.

Single piece cast iron body to enhance rigidity and reduce wear
Bearings run in oil bath for lubrication and cooling
Twin volute casing design to reduce rotational imbalance and increase lifetime of bearings and seals
Rotating inducer creates hydrodynamic shock waves to re-suspend settled particles beneath the pump inlet
Single stage, open vane impeller
Precision bearings
Non pressurised mechanical seal
Bent axis swash plate piston motor without case drain

Design fluid handled	Slurry
Maximum fluid SG	2.0 kg/l
Maximum fluid solids content	55 % by weight
Maximum particle size	32 mm
Maximum fluid temperature	90 °C
Recommended pH range	4-10
Weight	500 kg
Outlet diameter	100 mm

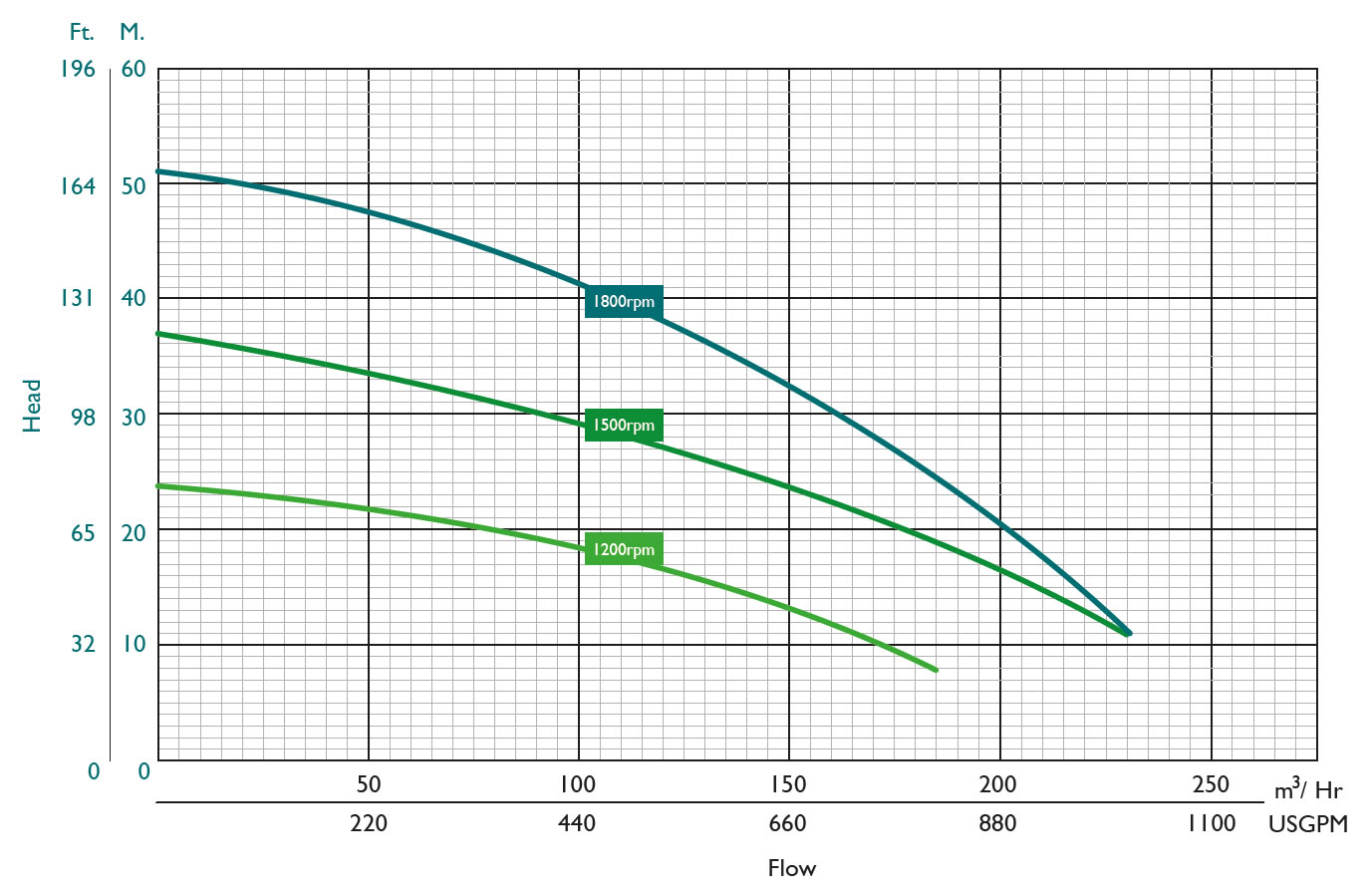

Maximum flow	230 m³/hr @ 1500rpm
Maximum head	51m (5.0 bar) @ 1800rpm
Impeller diameter	320 mm
Impeller tip speed	24 m/s @ 1800rpm
Peak efficiency	62%
Maximum submergence depth*	28 m
Motor displacement	63cc
Speed range	1200 – 1800rpm

*As standard, can be deeper if required.

Hydraulic service live ports

SAE J518 Code 62 3/4 inch (6000psi)

Allowable hydraulic pressure

250 bar

Hydraulic service drain port

3/4 inch – 16UNF-2B

Required hydraulic oil supply
