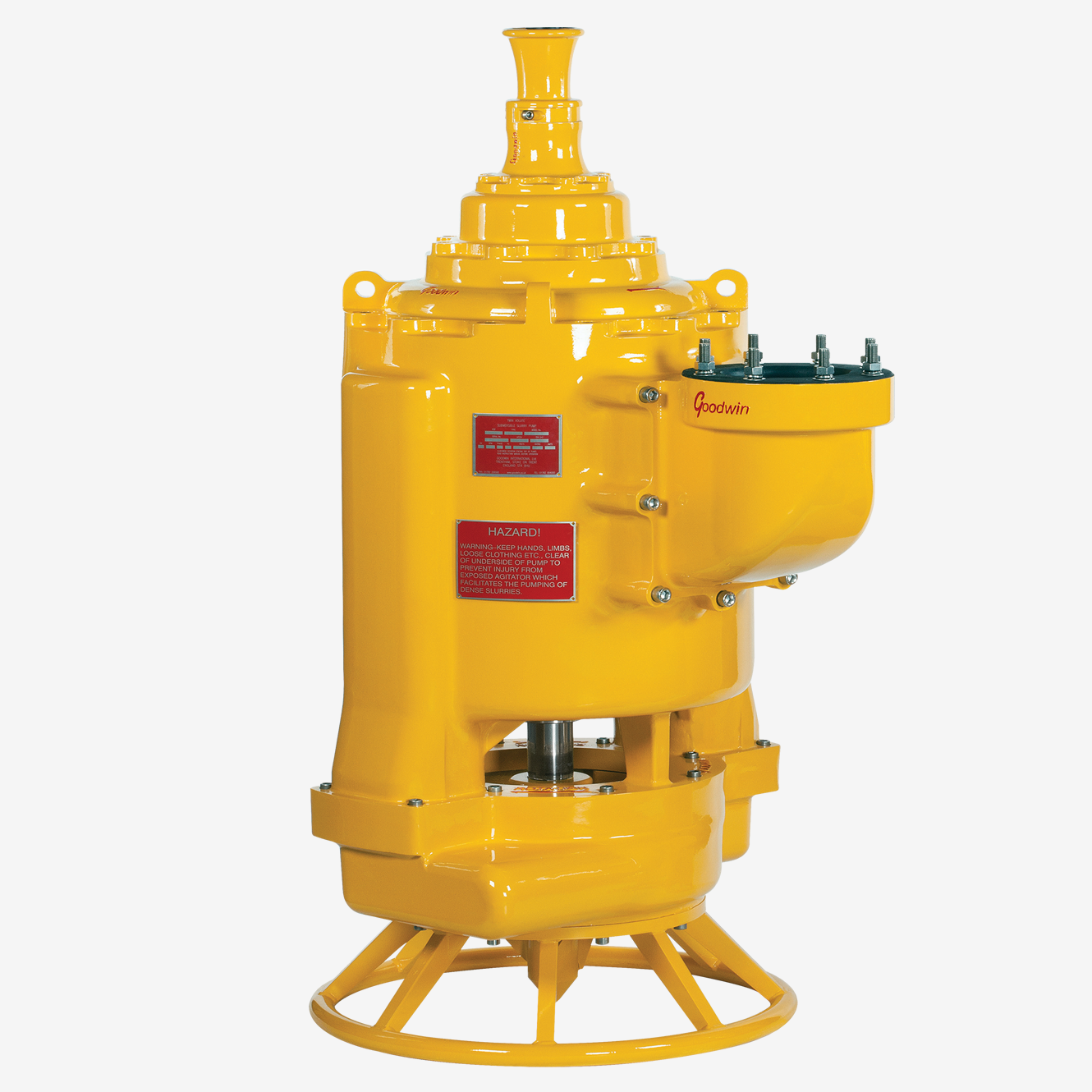

Available in 3 wet end configurations to suit any pumping problem, the pump uses a 3Ph, 112kW motor, and can be supplied for voltages ranging from 380V to 1000V. Note: NZE not available for a 60Hz supply.
| 200mm | NZE | ANZE | HNZB |
|---|---|---|---|
| Max Solid Content | 65% | 65% | 40% |
| Max Specific Gravity Kg/L | 2.5 | 2.1 | 1.5 |
| Max Particle Size | 76mm | 76mm | 40mm |
| Max Slurry Temperature | 90°C | 90°C | 90°C |
| Max Flow m³/hr (Ltrs/Sec) | 600 (170) | 800 (220) | 800 (220) |
| Max Head (Pressure Bar) | 27m (2.6) | 40m (3.9) | 53m (5.2) |
| Max Submergence Depth | 28m | 28m | 28m |
| Pump Size | Power kW | Speed RPM | Weight kg | Dimensions | Outlet Diameter mm | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| 200ANZE | 112 | 1160 | 2300 | 1973 | 1327 | 577 | 857 | 752 | 200 |
| 200HNZB | 112 | 1160 | 2375 | 1973 | 1327 | 577 | 937 | 752 | 200 |
All Goodwin Slurry Pumps have self-replaceable wet ends. Browse all replacement parts & accessories
