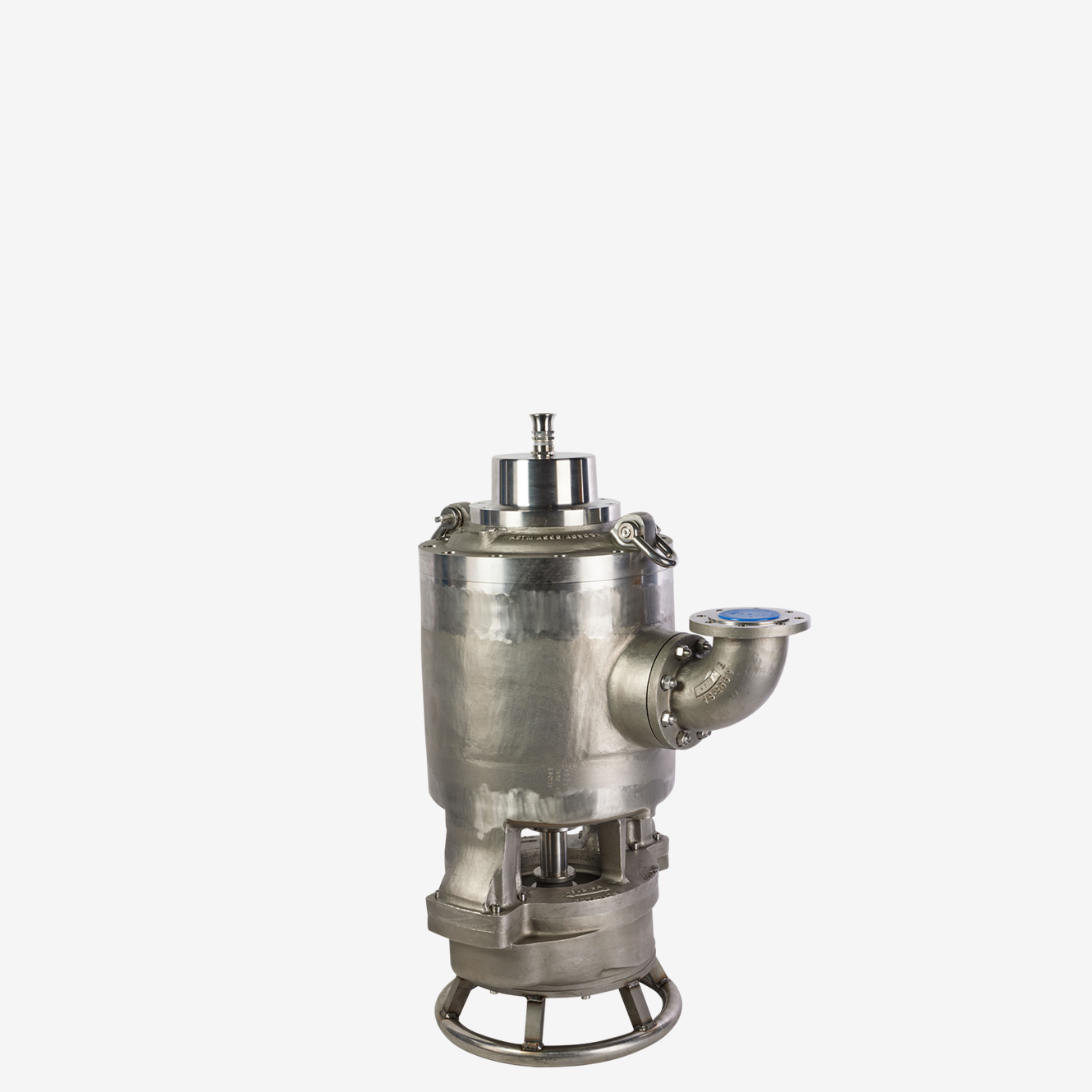

The Goodwin SDSS ANZE is specifically designed to pump corrosive slurry. The Goodwin Super Duplex Stainless Steel (SDSS) acid-resistant ANZE 100mm pump is constructed from the highest-quality alloys to extend its lifetime.
The SDSS pump is available in one size (30kW) and one outlet size (100mm). All parts of the pump that come into contact with the corrosive slurry are made from super duplex stainless steel alloys, which provide exceptional corrosion resistance. The pumps can operate in slurry temperatures up to 90oC.
Normal stainless steel pumps regularly fail in chemically aggressive applications where there is a solid handling element of the pumping. The Goodwin SDSS is more corrosion-resistant than normal stainless steel and has the abrasion resistance to pump slurry – there is no comparison.
Engineered from high-grade stainless steel, this submersible pump is built to withstand the toughest conditions. Whether dealing with corrosive liquids, high-pressure systems, or continuous use, this pump offers exceptional resistance to wear, rust, and damage. Designed for longevity, it reduces maintenance costs and delivers peace of mind for both residential and industrial users.
| 100mm SDSS | ANZE |
|---|---|
| Max Solid Content | 65% |
| Max Specific Gravity Kg/L | 2.8 |
| Max Particle Size | 32mm |
| Max Slurry Temperature | 90°C |
| Max Flow m³/hr (Ltrs/Sec) | 220 (61) |
| Max Head (Pressure Bar) | 38m (3.7) |
| Max Submergence Depth | 28m |

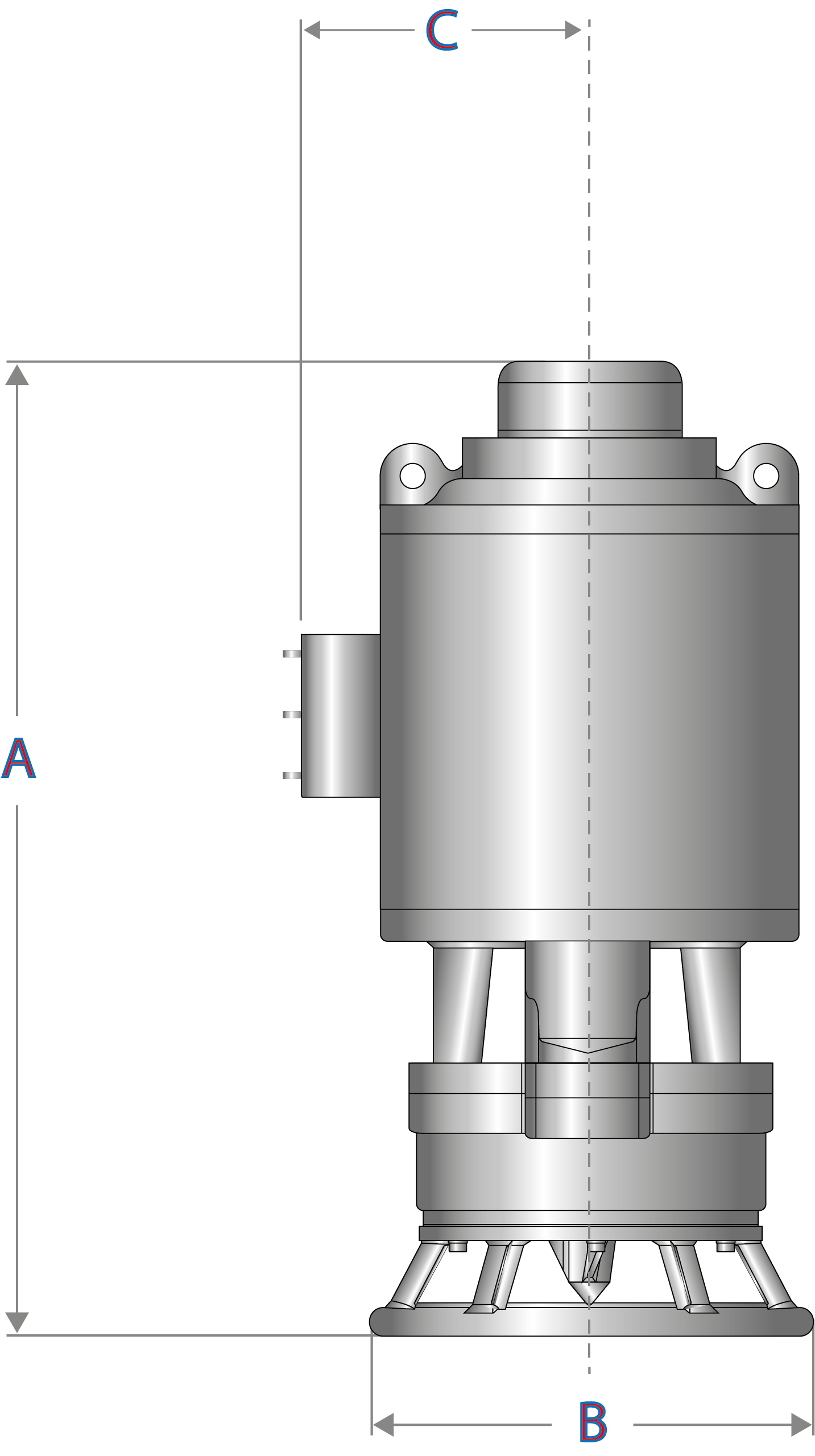

| Pump Size | Power kW | Speed RPM | Weight kg | Dimensions | Outlet Diameter mm | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| SDSS 100ANZE | 30 | 1450 | 770 | 1175 | 527 | 318 | 100mm PN10 | ||
All Goodwin Slurry Pumps have self-replaceable wet ends. Browse all replacement parts & accessories
