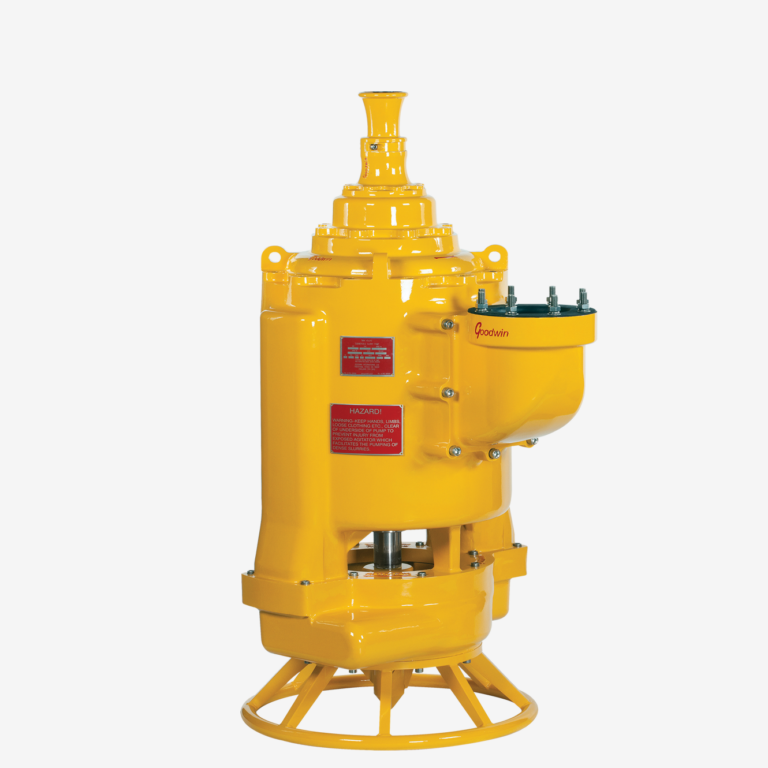

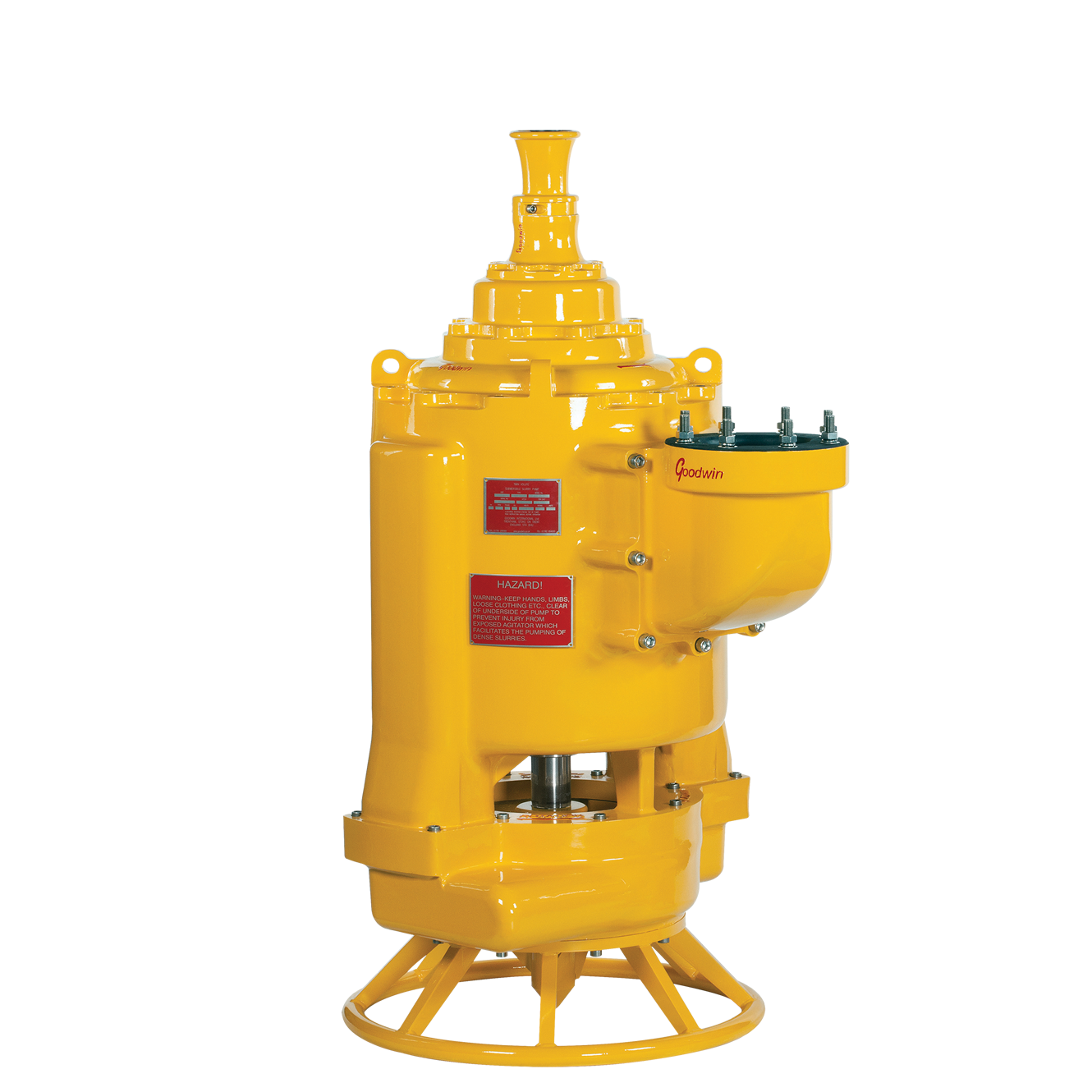

Available in 3 wet end configurations to suit any pumping problem, the pump uses a 3Ph, 90kW motor, and can be supplied for voltages ranging from 380V to 1000V. Note: NZE not available for a 60Hz supply.

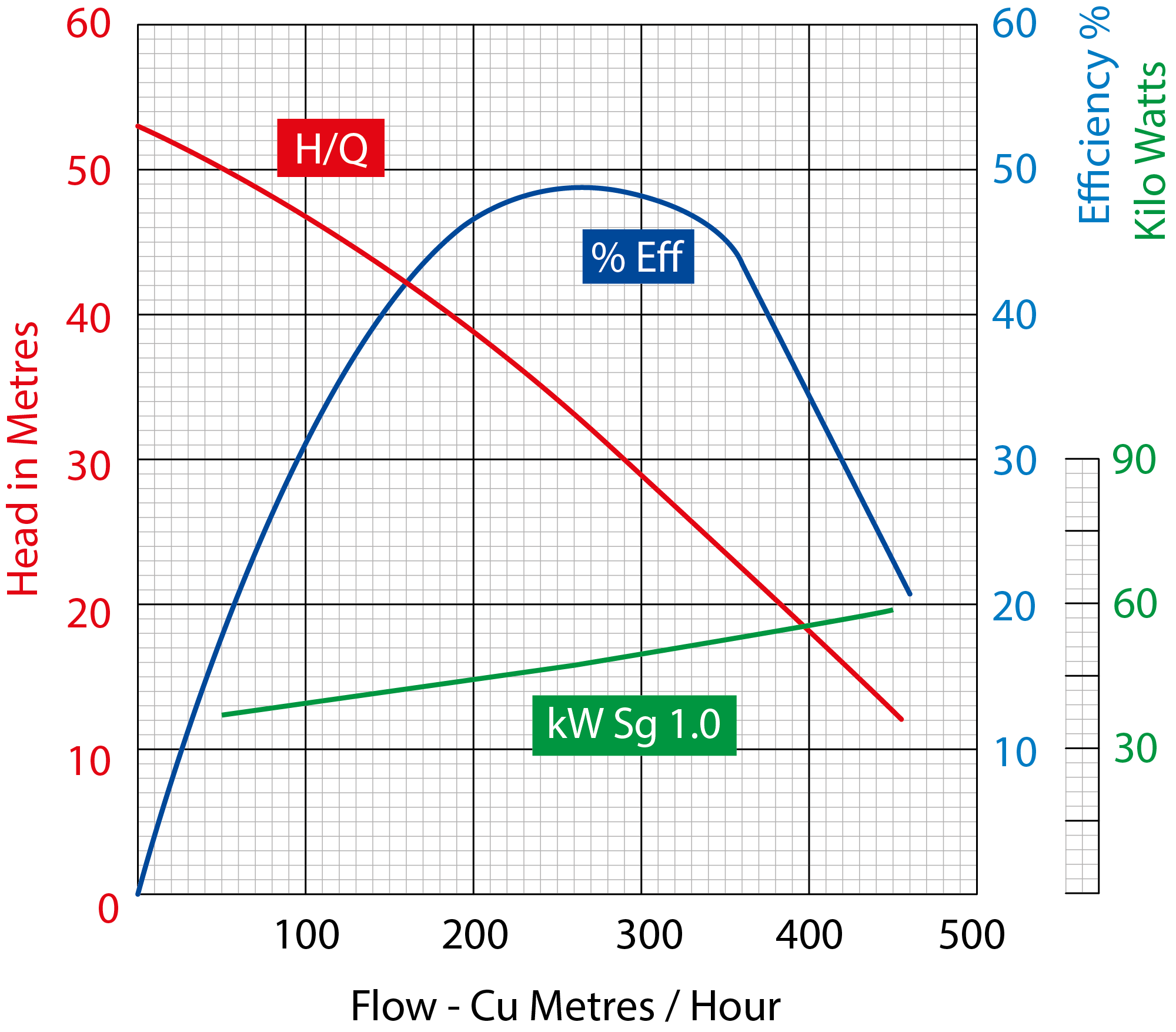

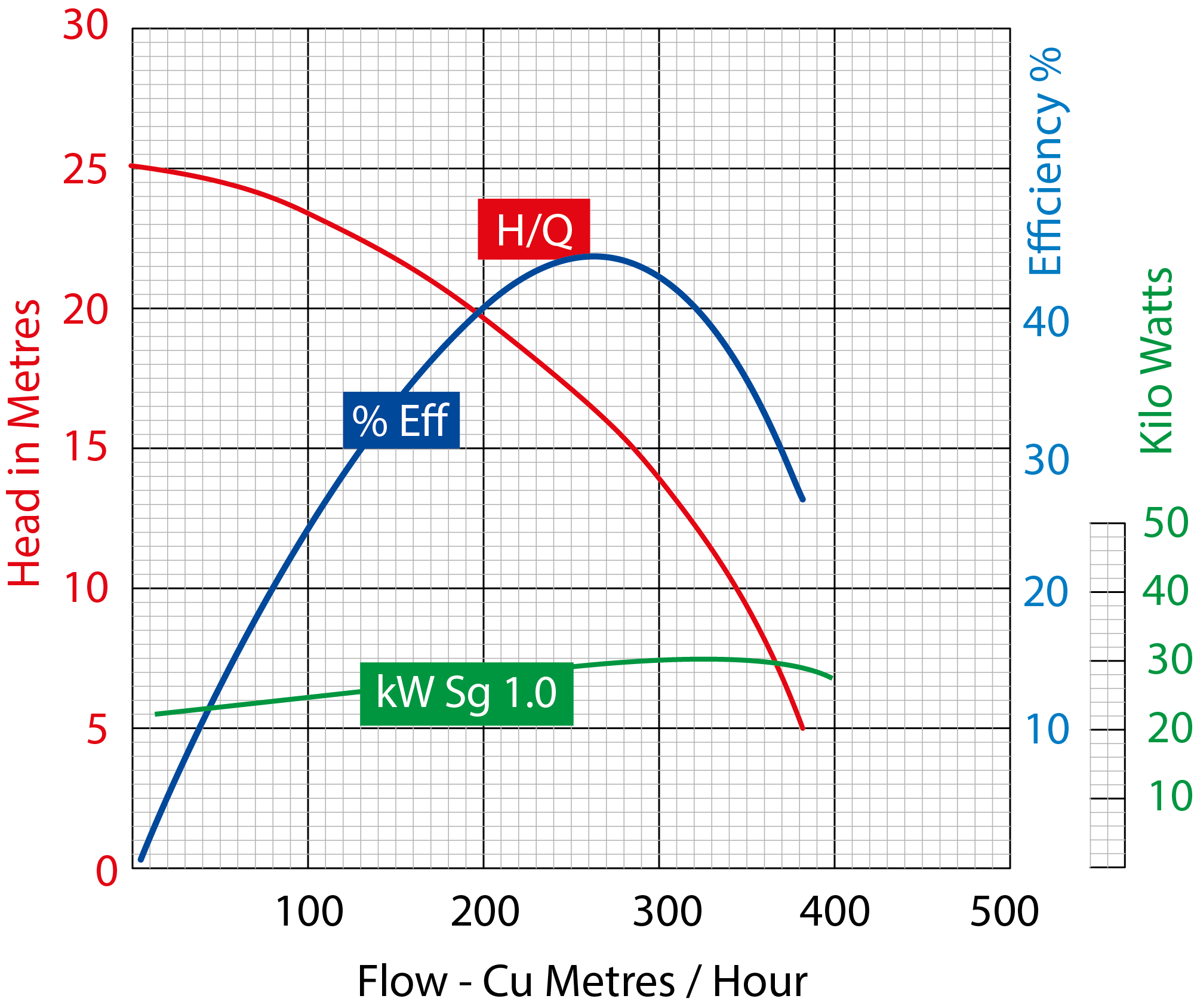

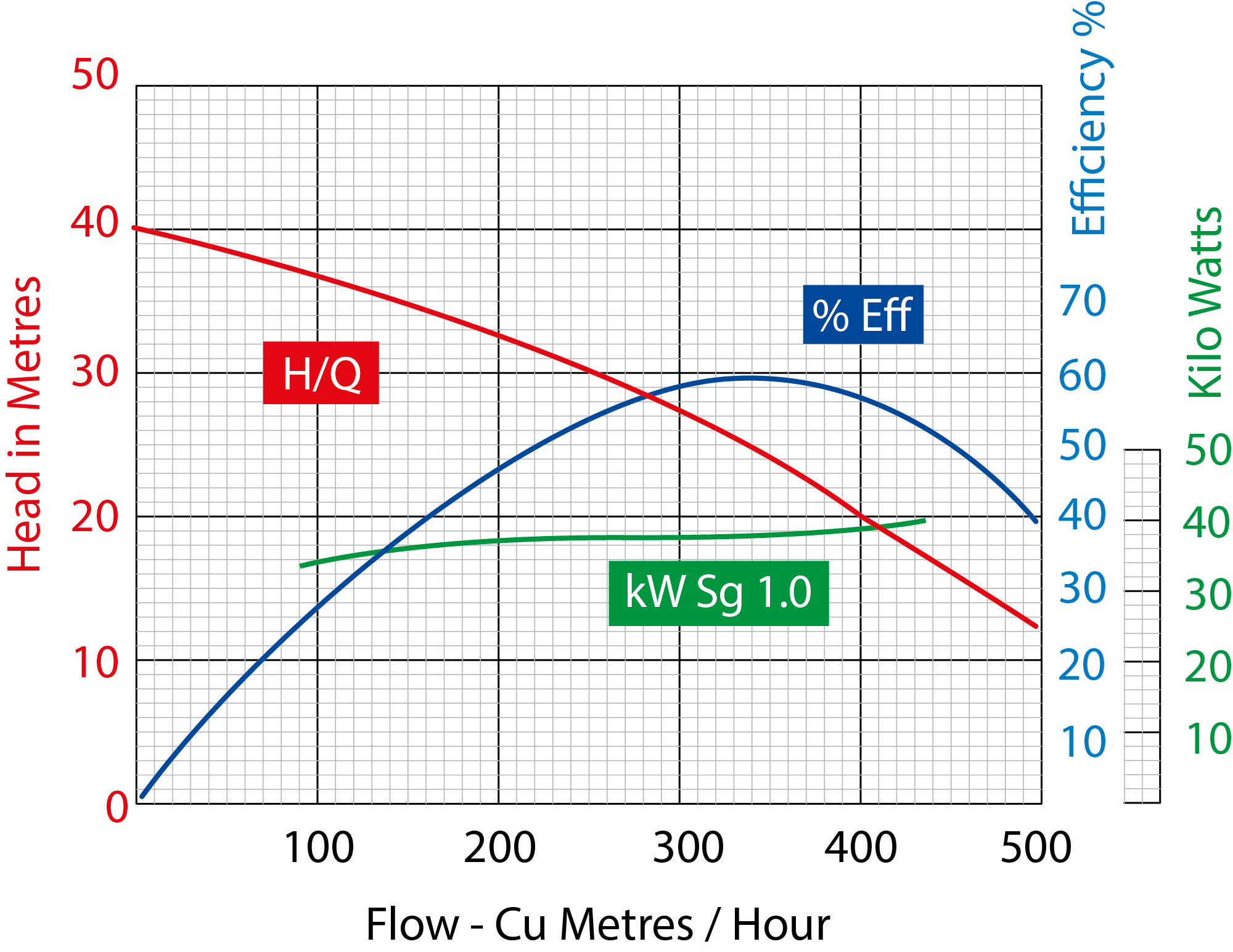

| 150mm | NZE | ANZE | HNZB |
|---|---|---|---|
| Max Solid Content | 65% | 65% | 40% |
| Max Specific Gravity Kg/L | 2.5 | 2.1 | 1.5 |
| Max Particle Size | 54mm | 45mm | 30mm |
| Max Slurry Temperature | 90°C | 90°C | 90°C |
| Max Flow m³/hr (Ltrs/Sec) | 380 (105) | 500 (140) | 460 (128) |
| Max Head (Pressure Bar) | 25m (2.4) | 38m (3.7) | 53m (5.2) |
| Max Submergence Depth | 28m | 28m | 28m |
| Pump Size | Power kW | Speed RPM | Weight kg | Dimensions | Outlet Diameter mm | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| 150ANZE | 90 | 1160 | 2020 | 1948 | 1268 | 520 | 857 | 663 | 150 |
| 150HNZB | 90 | 1160 | 2105 | 1938 | 1259 | 520 | 937 | 663 | |
All Goodwin Slurry Pumps have self-replaceable wet ends. Browse all replacement parts & accessories
